HaoFa 30-70psi Adjustable EFI Fuel Pressure Regulator Bypass Return Kit Universal with Pressure Gauge and 6AN ORB Adapter Aluminium Black&Red

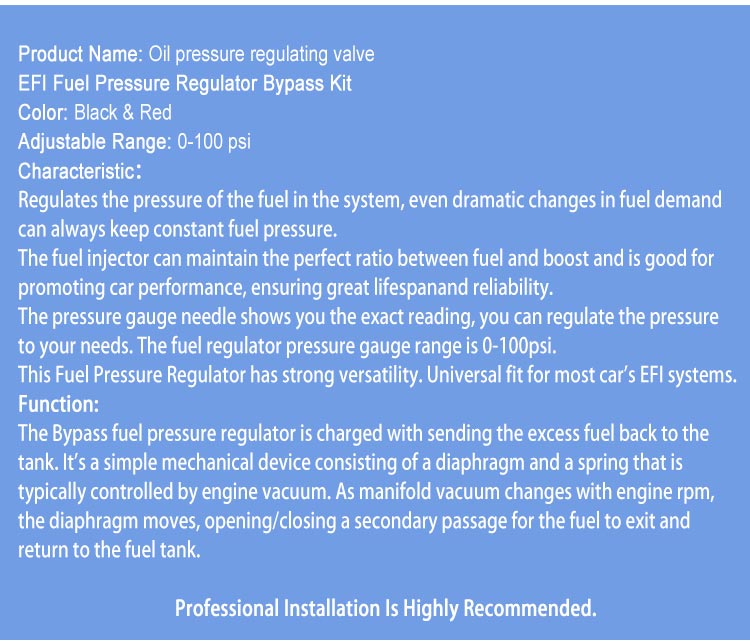

The fuel pressure regulator is a must have item for any EFI system, regulates the pressure of the fuel flowing through the system, keeps constant fuel pressure over, even during dramatic changes in fuel demand. This bypass pressure regulators return style provides constant effective fuel pressure to the outlet port – pressure overage is bled off through the return port as needed.

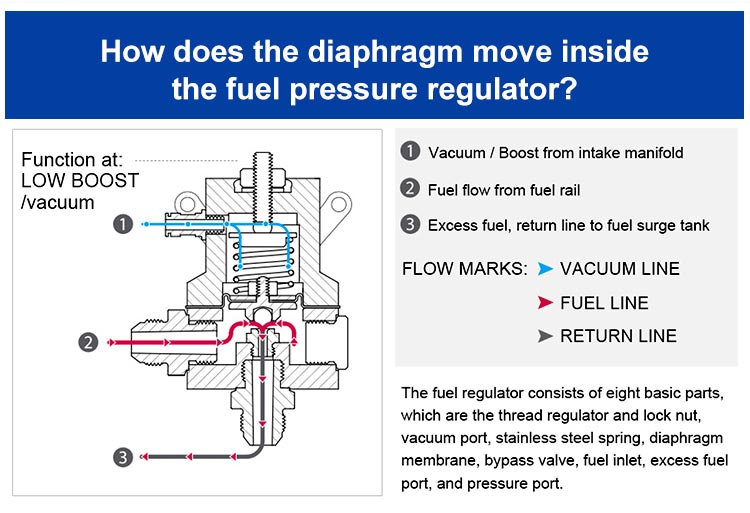

The fuel pressure regulator regulates the fuel pressure against the air pressure/boost, this leads to that the fuel injector can maintain the perfect ratio between fuel and boost and is good for promoting car performance, ensuring great lifespan and reliability. This EFI fuel pressure regulator kit can be capable of supporting applications up to 1000 HP, the EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines.

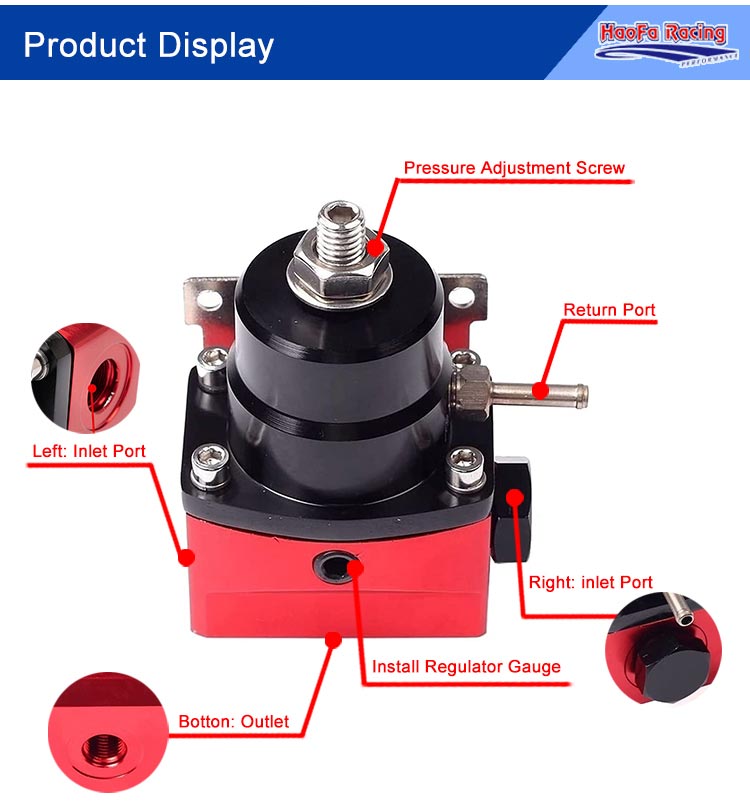

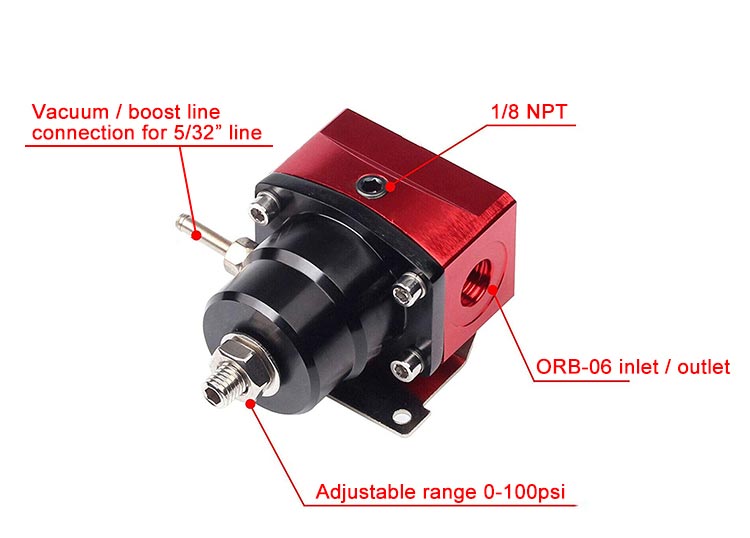

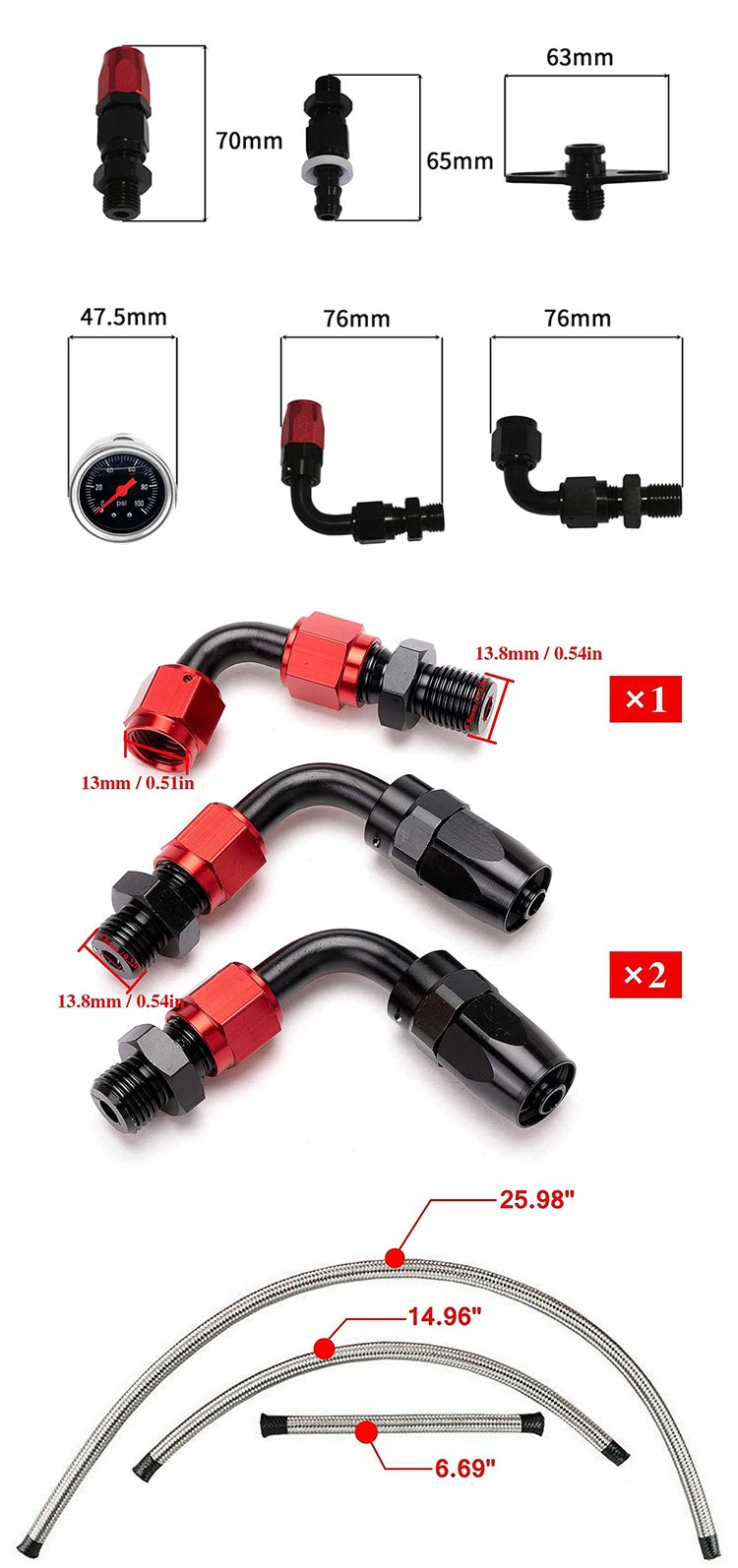

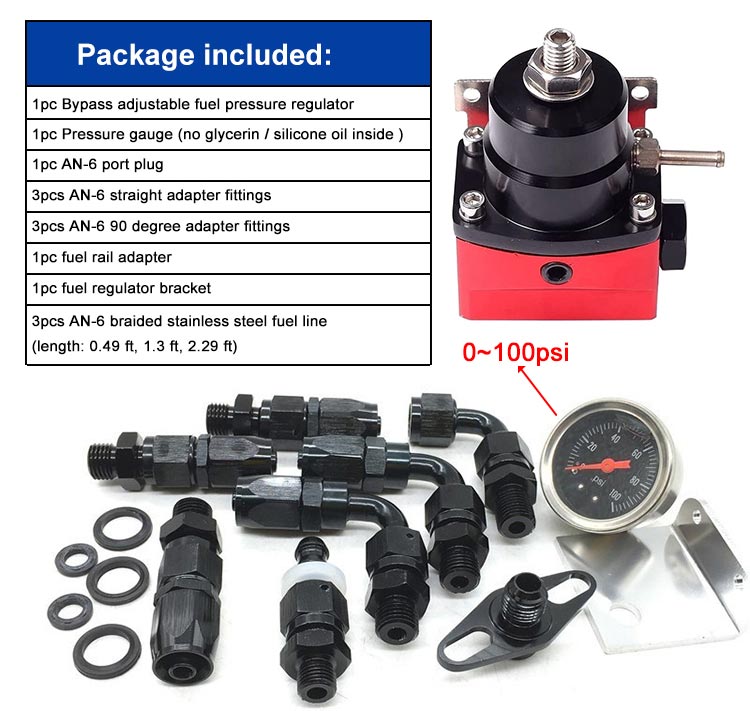

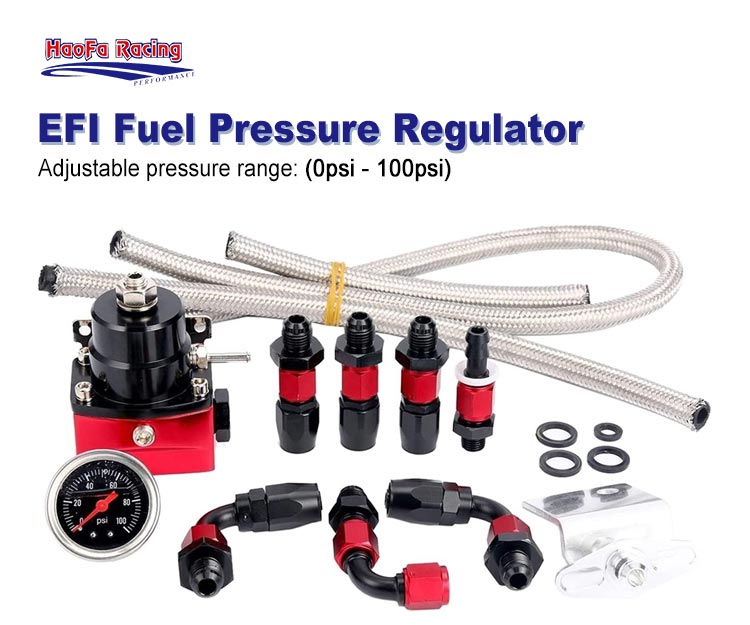

Adjustable pressure range: 30psi -70psi. You can regulate the pressure to your needs. The fuel regulator pressure gauge range is 0-100psi. Provides two ORB-06 inlet/outlet ports, one ORB-06 return port, one vacuum/boost port and one 1/8″ NPT gauge port (NPT thread requires thread sealant to seal). Material: Aluminum Alloy. Package included:as the main pic shown.

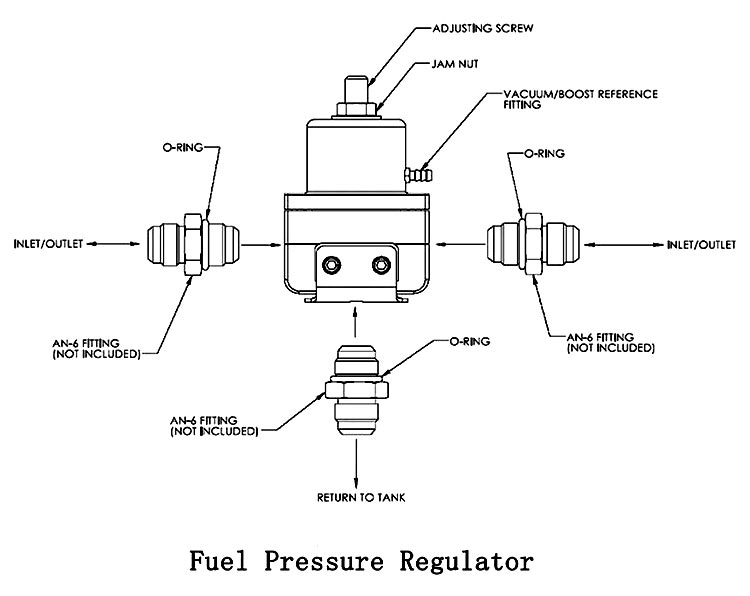

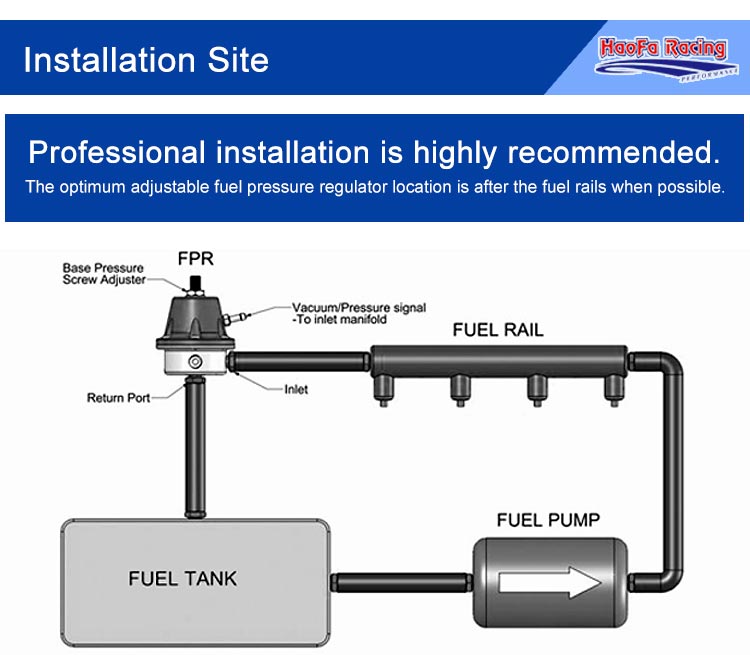

Universal fit for most vehicle’s EFI system. The optimum adjustable fuel pressure regulator location is after the fuel rail(s) when possible. The bottom is the return (return excess fuel through the line to fuel tank), and the sides are the inlet and outlet. It does not matter the direction of flow through the inlet/outlet. Adjust the set screw on top to get the desired pressure.
